As a product from a leading high frequency vibration output Factory, the SV500 generates a centrifugal force of 772 kN at an eccentric moment of 7.6 kgm. The frequency range (2300–3100 rpm) delivers rapid soil liquefaction, allowing piles to sink or extract 30–50% faster than standard hydraulic vibratory hammers. This high frequency vibration output is especially effective in dense clay, sandy gravel, and permafrost layers common in Siberian infrastructure projects or coastal reclamation in Indonesia. Lower amplitude combined with high frequency also reduces fatigue on the excavator boom.

The SV500 features a low maintenance cost design developed by experienced Manufacturers. Key elements include:

• Cartridge‑type eccentric bearings with centralized grease ports – greased every 100 hours instead of daily.

• Hardened, replaceable wear plates on the side clamp and bottom clamp – no need to replace entire clamp bodies.

• Sealed hydraulic motor with integrated pressure relief – eliminates external drain lines.

• Modular valve block with accessible test ports for quick diagnostics.

This low maintenance cost design means lower spare parts consumption and fewer mechanic hours. Contractors in India and Russia report 40% lower annual maintenance expenses compared to conventional side grip hammers.

The SV500 incorporates a dual pump flow merging system from specialist Manufacturers. This system intelligently combines the flow from two independent auxiliary circuits of the host excavator, delivering a stable 320–400 L/min at 32 MPa – even when engine speed fluctuates under load. The dual pump flow merging system also includes an anti‑cavitation valve and an oversized oil cooler, preventing overheating during continuous operation in tropical climates (e.g., 45°C in Thailand or India). No external power pack is required, keeping the total weight low and manoeuvrability high.

The bidirectional tilt driving head allows the pile to be tilted left or right up to 30° from vertical, while the main slewing ring provides 360° rotation. This bidirectional tilt driving head is invaluable when installing raked sheet piles for seawall reinforcement, driven under bridges with sloping abutments, or aligning piles on uneven terrain. Unlike single‑tilt designs, the bidirectional system gives full control without repositioning the excavator. Operators in Malaysia’s hillside developments and Russia’s riverbank protection projects rely on this feature daily.

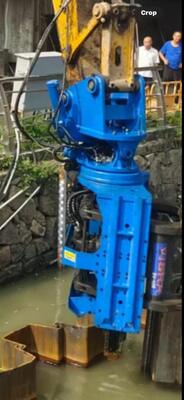

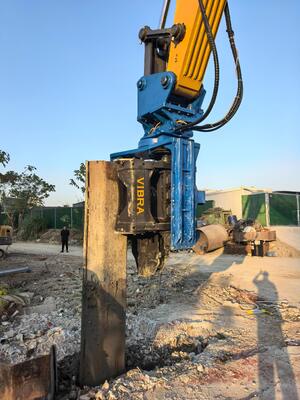

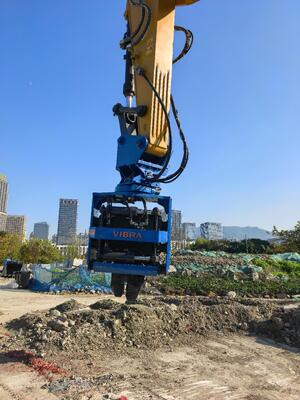

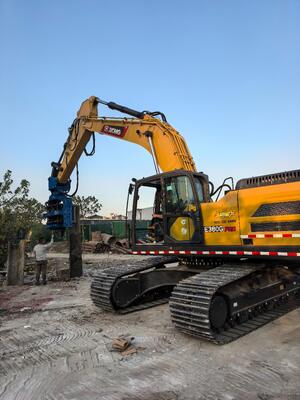

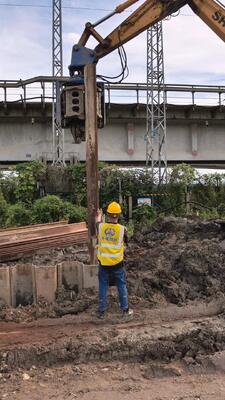

As a Side grip pile driver China model, the SV500 is designed specifically for confined spaces. The side‑grip configuration holds the pile close to the excavator arm, requiring only 3.5–4 meters of vertical headroom. The bottom clamp secures the pile tip, preventing wandering during driving. This Side grip pile driver China has been successfully deployed inside factory expansions, under existing overhead cranes, and along highway median barriers – areas where conventional pile rigs cannot operate.
