Product Overview

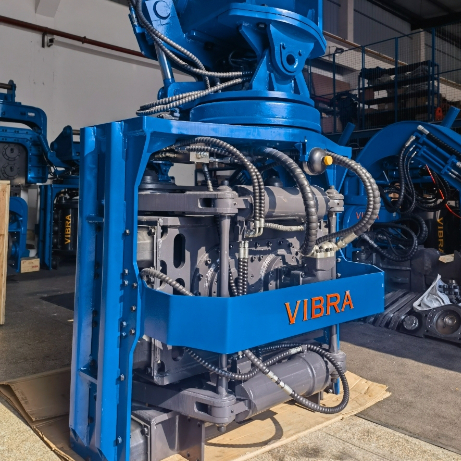

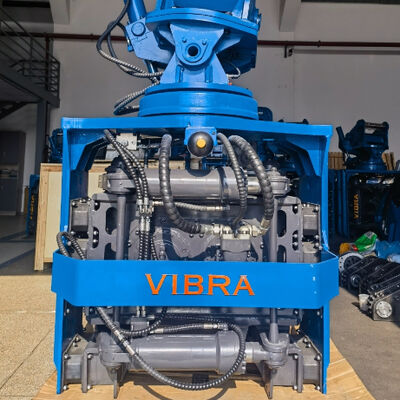

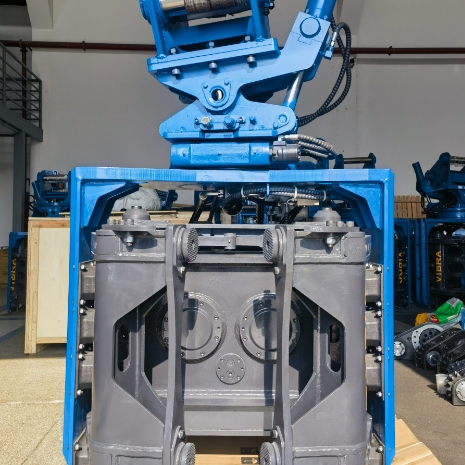

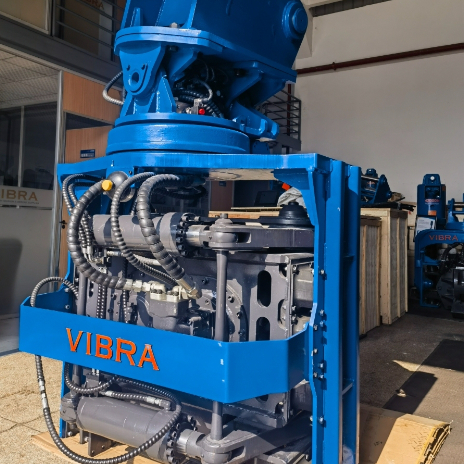

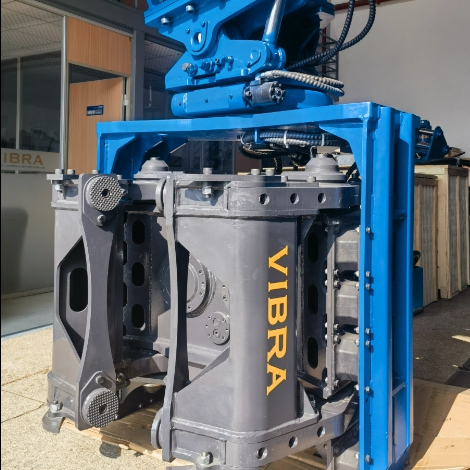

The SV-400 Side Grip Pile Driver is a highly specialized and powerful hydraulic vibratory hammer attachment, engineered as the ultimate solution for piling and extraction in the most constrained and challenging construction sites. Designed specifically to meet the demanding infrastructure growth in high-potential markets like Southeast Asia, India, and Russia, it transforms standard 32-40 ton excavators into versatile, high-performance piling rigs. This innovative machine excels in low-clearance and narrow-space environments—such as dense urban redevelopments, inside operational factories, near sensitive structures, and bridge foundations—enabling contractors to tackle projects previously considered impractical or too costly.

Core Features & Technological Advantages

1. Revolutionary 360° Maneuverability: The integrated side clamp and bottom clamp system allows the driver to securely grip, lift, and perform a full 360° rotation and ±30° tilt of the pile. This unparalleled maneuverability enables perfect, millimeter-accurate positioning in any orientation, eliminating dangerous manual handling and redefining precision in confined spaces.
2. High-Efficiency Hydraulic Vibration: Powered directly by the carrier excavator's hydraulic system, the SV-400 generates a formidable centrifugal force of 656 KN within a variable frequency range of 2300-5000 RPM. This ensures rapid and effective penetration and extraction cycles across diverse soil conditions, from sandy fills to stiff clays prevalent in target regions.
3. Space-Optimized, Robust Design: Built with a compact footprint (1400L x 1315W x 3056H mm), it operates seamlessly where traditional large piling rigs cannot access. Its heavy-duty, one-piece construction ensures exceptional durability and reliability under the harsh job site conditions typical in India, Russia, and Southeast Asia.
4. Multi-Pile Versatility with Quick-Change System: Featuring a standardized, interchangeable clamp interface, the SV-400 effortlessly handles a wide array of foundation elements. Contractors can quickly switch between driving steel sheet piles, H-beams, circular pipe piles, and casing piles with a single attachment, maximizing utility and return on investment.
5. Simple Integration & Operation: Designed for compatibility with the common 32-40 ton excavator fleet in your market, installation requires minimal modification. This plug-and-play capability allows for fast deployment, getting your piling project started within hours, not days.

Key Benefits for Your Projects

Unlock Inaccessible Sites: Complete foundation work in extremely tight urban lots, inside existing buildings, or under low overhead obstructions without costly site preparation or demolition.

Slash Project Costs & Time: Eliminate the need for expensive, specialized piling rigs and auxiliary cranes. High operational efficiency reduces fuel consumption and rapid cycling dramatically shortens project timelines.

Enhance Safety & Quality: Remove workers from the hazardous zone during pile handling. The precision control system guarantees accurate placement, improving overall installation quality and structural integrity.

Maximize Equipment ROI: One versatile attachment replaces multiple machines. Its low-maintenance, high-uptime design ensures long-term service life and profitability across countless projects.

Technical Specifications (SV-400 Model)

Model:

VIBRA SV-400 (Side Grip Type)

Centrifugal Force:

656 KN

Frequency Range:

2300 - 3000 RPM

Clamping Force:

Side Clamp 465 KN | Bottom Clamp 520 KN

Rotation / Tilt:

360° / ±30°

Operating Pressure/Flow:

32 Mpa / 280-360 L/min

Carrier Compatibility:

32 - 40 Ton Excavators

Weight (Incl. Connector & Clamp):

3870 kg

Frequently Asked Questions (FAQ)

Q: What is the minimum order quantity?

A: Our MOQ is 1 unit, providing flexibility for both individual contractors and large firms.

Q: What is the delivery lead time to our region?

A: Standard lead time is 15-35 days ex-works. We have optimized logistics channels to major ports in Southeast Asia, India, and Russia for efficient shipping.

Q: Can the machine be customized to match our fleet?

A: Yes. We offer customization options including color scheme painting and the application of your company logo.

Q: How is the machine's quality and durability assured?

A: Manufacturing follows strict ISO 9001:2015 standards. Critical components use high-strength, wear-resistant materials, and the robust one-piece frame is built for minimal maintenance and maximum durability.

Q: Is it suitable for the hard soil conditions in our area?

A: Absolutely. The high centrifugal force and adjustable frequency are engineered to penetrate and extract piles effectively in compacted soils, clay, and mixed geological layers common in your markets.

Q: What after-sales support is available locally?

A: We provide comprehensive manuals, online operator training, and have established a network of technical service partners and spare parts support across your regions to ensure ongoing machine performance and minimize downtime.
